PL65 Light Tower

Package: PL65WKBT, SE PACKAGE, 6KW, 60HZ

The Bobcat® PL65 portable light tower provides long runtimes and even longer maintenance intervals for easy, hassle-free operation.

One of the most compact light towers available
Optional LED lamps extend runtime with a 50,000-hour lifespan
Composite clamshell gives you easy access to all service components
Ideal for construction, disaster relief, parking lots and special events

From illuminating construction sites for 24-hour productivity to bringing much-needed light to assist with emergency disaster relief operations, count on the Bobcat PL65 portable light tower and its impressive class-leading 119-hour runtime.

The PL65 is a programmable light tower that can be set to turn on at dusk and turn off at dawn for uninterrupted productivity. The mast rotates a full 360 degrees and extends up to 23 feet high for broad coverage, while each of the lights can be pointed independently. When it comes time to reposition, the PL65 is compact and light enough to be maneuvered by hand.

The Bobcat PL65 vertical mast light tower features a compact footprint for increased jobsite mobility and cost-effective transport – you can fit 17 on a single flatbed truck. It’s powered by a reliable Kubota® engine paired with a high-output 6-kilowatt alternator, giving you both light and power at the same time.

Like all Bobcat products, the PL65 was engineered for maximum productivity, ease of use and low lifetime cost of operation. The innovative clamshell-style canopy is made of a durable, lightweight composite material that lifts easily for quick access to all service points. The Kubota engine has one of the longest maintenance intervals on the market, capable of running for 1,000 hours in between oil changes, reducing downtime and maintenance costs.

If your workday doesn't end, or your event heats up after the sun goes down, trust the Bobcat PL65 to provide safe working conditions with zero interruptions.

Specification	Value
LIGHTING
Number of Lights	4
Runtime with 4 Metal Halide Lights	119 hr
Runtime with 4 LED Lights	210 hr
ENGINE
Engine Brand	Kubota®
Number of Cylinders	3
Emissions Tier Level	Tier 4 Final
Cooling System	Water / Glycol
Fuel Type	#2 Ultra-Low Sulfur Diesel
Fuel Capacity	52.4 gal
PERFORMANCE
Prime Power Rating	8 HP
Rated Speed	1,800 RPM
Operating Weight	1,669 lbs
GENERATOR / ELECTRICAL
Available AC Voltage	120V Single-Phase
Alternator Output	6 kW
120V GFCI Duplex (NEMA 5-20R)	(1) Standard / (2) Optional
240V Twist Lock (NEMA L6-30R)	(1) Optional
DIMENSIONS
Height with Tower Deployed	23 ft
Height with Tower in Transport Position	8.5 ft
Length with Drawbar Up	82 in
Length with Drawbar Down	109 in
Width	55 in
Width without Outriggers Deployed	82 in
Track Width	47.4 in

Light Towers

LVC6 Light Tower - Rental

PL65 Light Tower

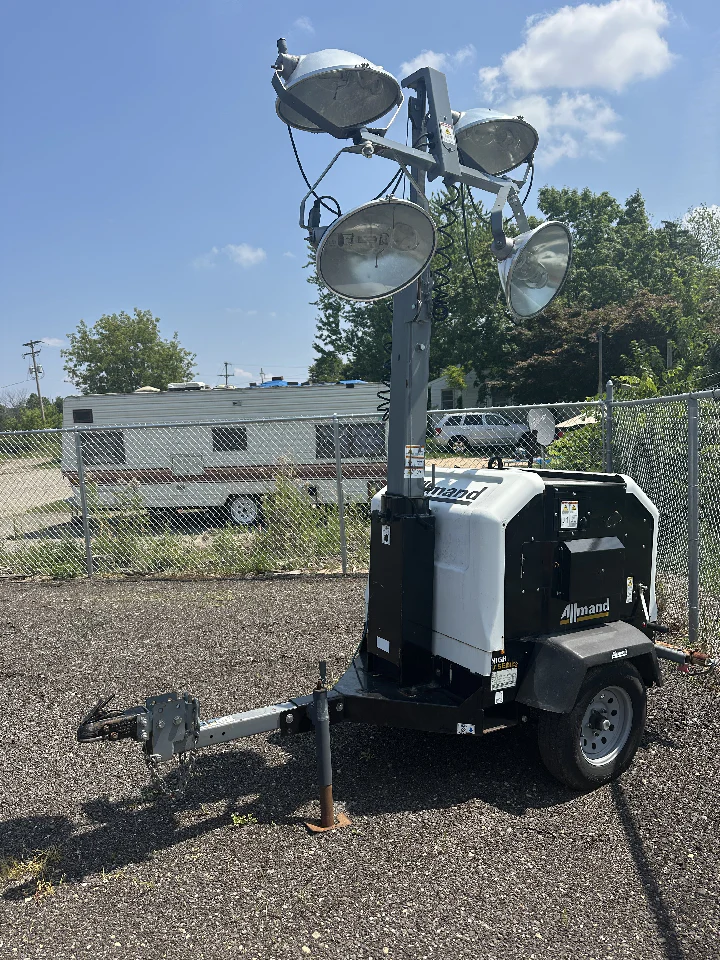

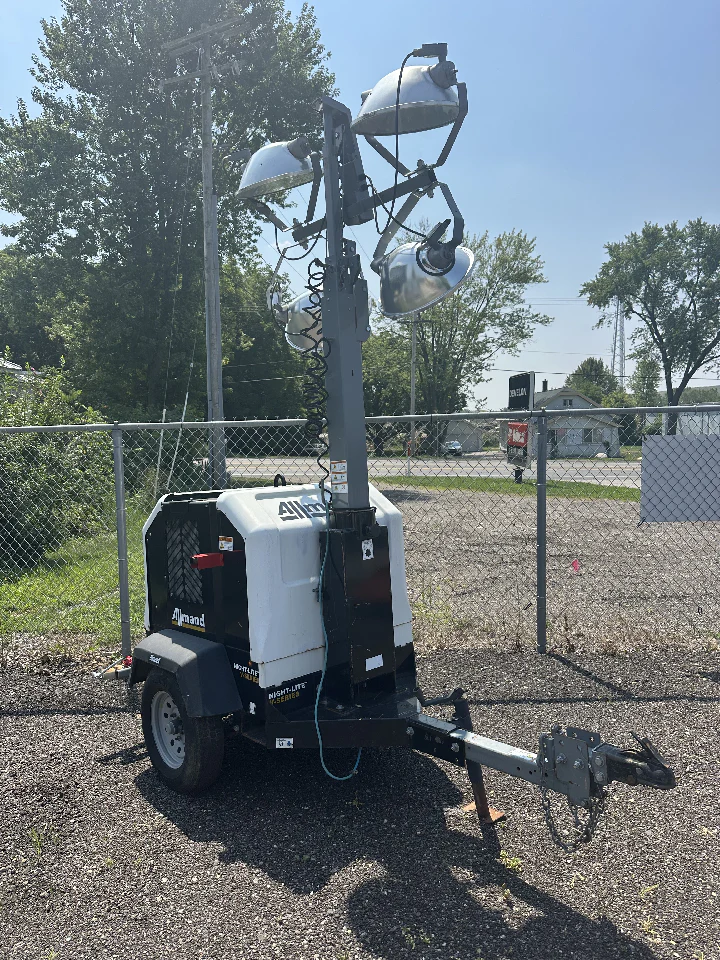

NIGHT-LITE LIGHT TOWER - 71872
