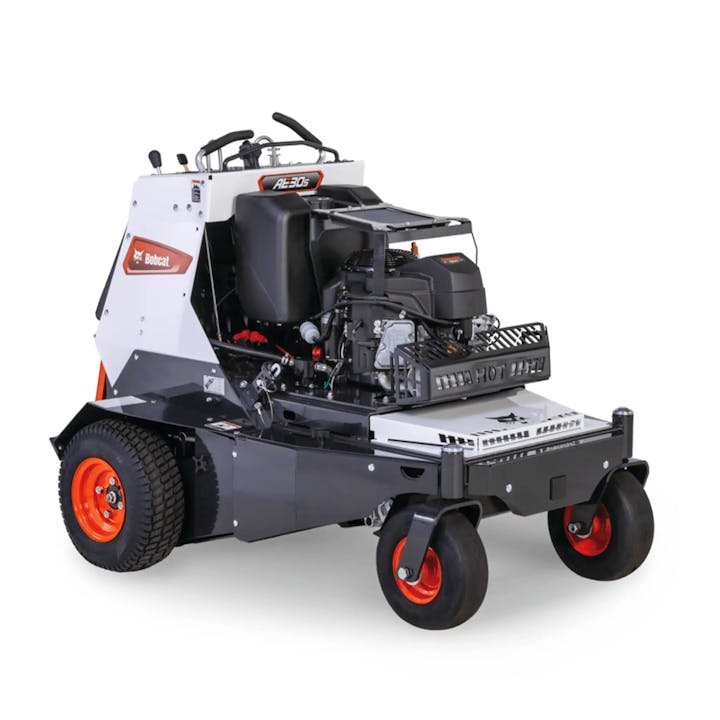

Bobcat AE30S Stand-On Aerator

Swift and efficient, the Bobcat® AE30S aerator is capable of covering two-and-a-quarter acres per hour at ground speeds up to 7 mph.

• 30 in. working width
• 48 hardened alloy steel coring tines

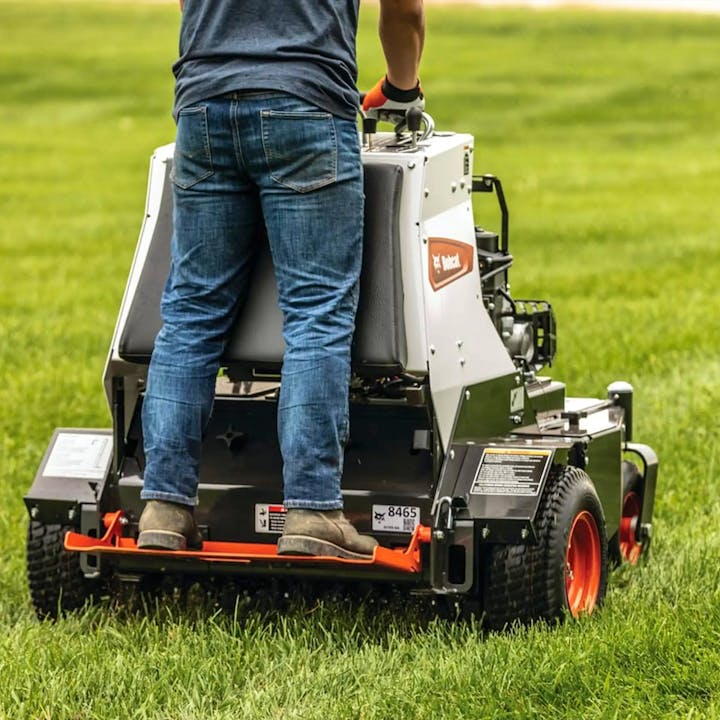

• Stand-on anti-vibration operator platform

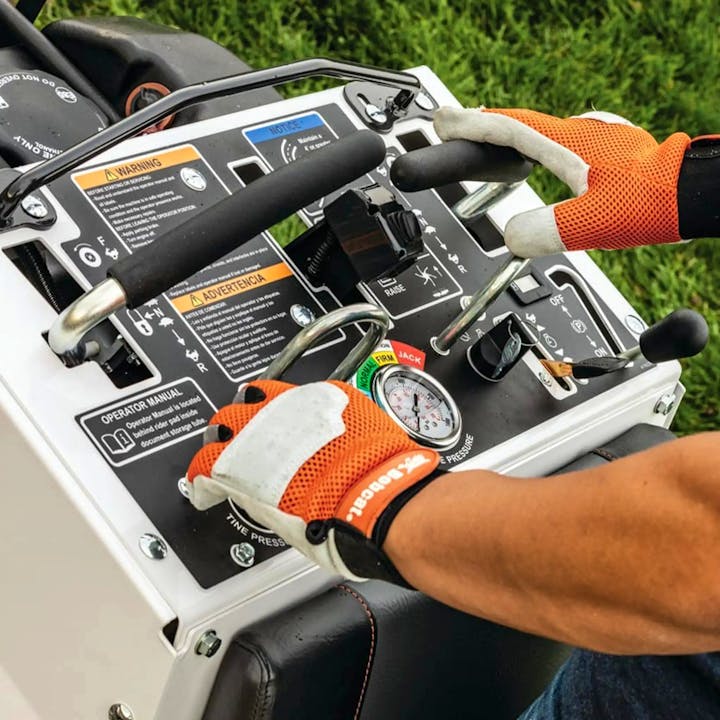

• All operating controls are located at the handlebar for convenient and easy operation
• Patented depth stops ensure consistent and accurate results

Aeration season doesn’t last forever, that’s why you need a swift, efficient machine that saves you time while increasing your productivity. The Bobcat AE30S does just that, capable of covering two-and-a-quarter acres per hour at ground speeds up to 7 mph. Its innovative features and controls also give you the power and speed to take on the biggest jobs. It’s packed with features including an anti-vibration operator platform that can be flipped up for walk-behind applications, patented depths that create a hard limit for tine penetration, a patented cooling system that provides optimal engine temperature, and a patented chain tensioner system that automatically keeps the chains properly tightened.

Key Specs

Engine Model	Kawasaki FS541V
Engine Displacement	36.8 in³
Width	47.2 in
Aeration Width	30 in
Maximum Aeration  Depth	5 in
Aeration Pattern	3.75 in x 8 in
Drive System	Belt from engine to hyrdostat input shafts; hydrostatic drive to jackshaft via auto-tensioned #50 chain; jackshaft to wheels & tines via (2) #50 chains

Engine

Engine Model	Kawasaki FS541V
Engine Displacement	36.8 in³
Horsepower	15 hp
Fuel Capacity	5 gal

Performance

Weight

1,235 lb

Dimensions

Length	60.5 in
Width	47.2 in
Height	48 in
Length: Platform Down	69.5 in

Aeration

Tine Type	0.75 in form from 0.08 in hardened chrome molybdenum alloy steel
Aeration Width	30 in
Max Aeration Depth	5 in
Aeration Pattern	3.75 in x 8 in
Tine Engagement	Thumb-operated Tine Lift Switch
