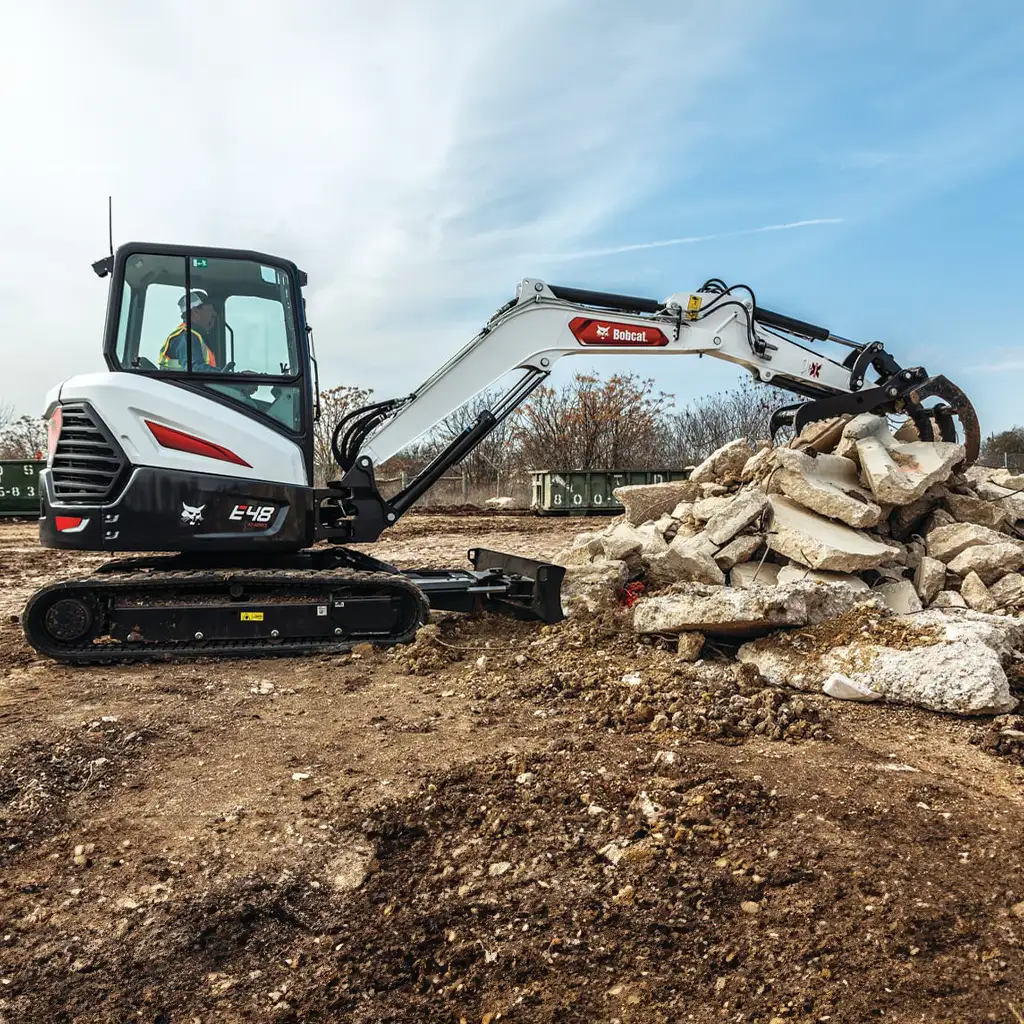

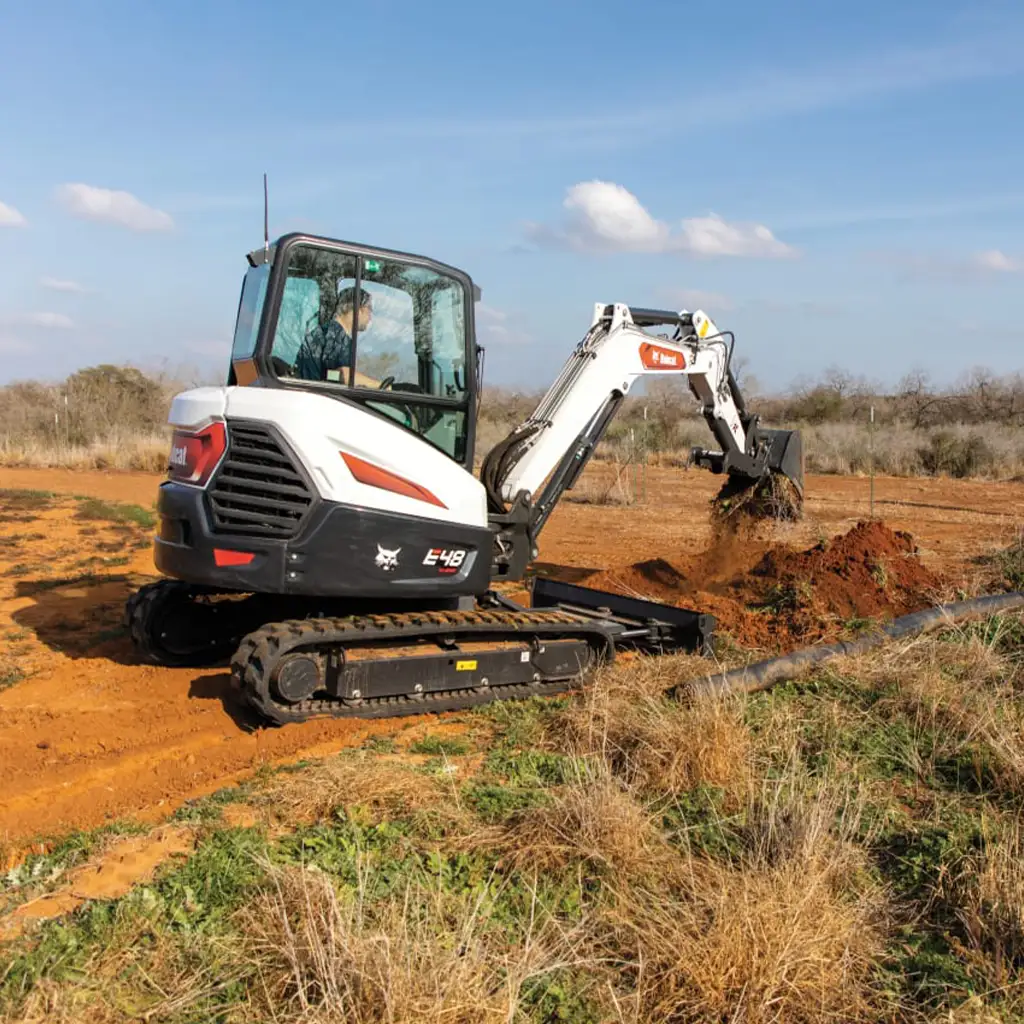

Rent a Bobcat E48 Mini Excavator - Bobcat Rental in Michigan

The conventional tail swing E48 not only includes all of the enhancements that make R-Series compact excavators great, but adds a host of R2-Series innovations, as well. The E48 is for customers looking for additional weight and performance while staying within the compact excavator category. The R2-Series E48 replaces both the M-Series E42 and E45 in the Bobcat® lineup.

Highlights of the Bobcat E48 R2-Series compact excavator include:

• Conventional tail swing
• Improved hydraulic control valve for smoother, more precise controls
• Depth-check ready
• Refined joysticks with more fingertip control options
• Standard Deluxe Display and optional 7-inch Display
• Dual-flange roller track system for better over-the-side digging stability and performance
• Learn more about Bobcat's compact excavator strategy.

Specs

Key Specs

Operating Weight	9,830 lb
Bucket Digging Force	9,601 lbf
Maximum Reach at Ground Level	207.1 in
Tail Swing Type	Conventional

Engine

Emissions Tier (EPA)	Tier 4
Engine Cooling	Liquid
Engine Fuel	Diesel
Horsepower	42
Turbocharged Engine	Yes

Performance

Operating Weight	9,830 lb
Weight Class	4.5 Ton
Travel Speed - High	3.3 mph
Travel Speed - Low	1.6 mph
Arm Digging Force	5,820 lbf
Bucket Digging Force	9,601 lbf
Rated Lift Capacity	4,921 lb
Lift Radius	118 in
Boom Swing - Left	75°
Boom Swing - Right	50°
Maximum Dig Depth	124.5 in
Max Dump Height	150.6 in
Maximum Reach at Ground Level	207.1 in

Capacities

Fuel Tank

19 gal

Hydraulic System

Auxiliary Std Flow	20 gal/min
Auxiliary Pressure	3,045 psi

Dimension

Length	200.5 in
Width	72.8 in
Height	99.1 in
