Rent a Bobcat L23 Articulating Loader - Bobcat Rental in Michigan

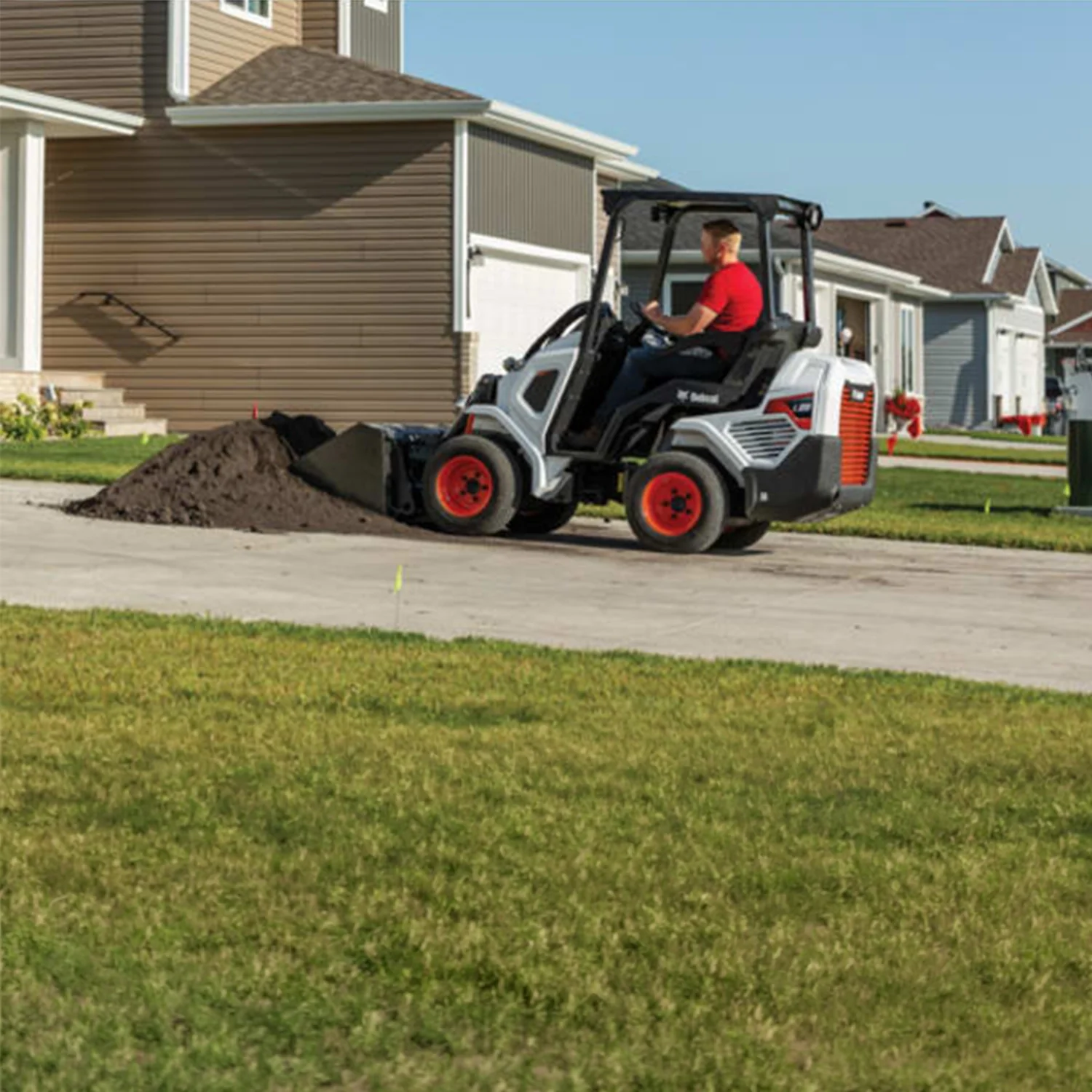

The L23 Bobcat® small articulated loader delivers impressive lifting capability in a compact and turf-friendly package.

• Minimal ground disturbance
• Tight-turning articulation joint to get through tight spaces
• Impressive lifting capacity
• Power Bob-Tach System

Specs

Key Specs

Horsepower	24.8 hp
Rated Operating Capacity Straight (ISO)	1,395 lb
Rated Operating Capacity Articulated	1,159 lb
Operating Weight	3,790 lb
Auxiliary Standard Flow	12.1 gal/min
Width (Over Tires)	43.2 in

Engine

Emissions Tier (EPA)	Tier 4
Engine Cooling	Liquid
Engine Fuel	Diesel
Horsepower	24.8 hp
Turbocharged Engine	No

Performance

Rated Operating Capacity Straight (ISO)	1,395 lb
Rated Operating Capacity Articulated (ISO)	1,159 lb
ROC with Counterweight - Straight	1,815 lb
ROC with Counterweight - Articulated	1,471 lb
Tipping Load - Straight	2,789 lb
Tipping Load - Articulated	2,317 lb
Operating Weight	3,790 lb
Travel Speed	8.2 mph

Capacities

Fuel Tank

9.6 gal

Hydraulic System

Auxiliary Std Flow	12.1 gal/min
System Relief @ Quick Couplers	2,900 psi

Dimension

Length	122.4 in
Length without Attachment	93.2 in
Length with Standard Bucket	122.4 in
Width (Over Tires)	43.2 in
Width (With Bucket)	44 in
Height with Operator Cab	78.1 in
Height to Bucket Hinge Pin Extended	85.4 in
Height to Bucket Hinge Pin Retracted	85.4 in
Max Reach	16.8 in
Turning Radius Inside	77.2 in
Turning Radius Outside	100.9 in
Wheelbase	47.2 in
Articulation Angle	43°
Dump Angle @ Maximum Height	40°
Ground Clearance	5.5 in
Rollback Angle	32°
Tire Size	23X8.5-12
Wheel Tread	34.4 in
