Rent a Bobcat L65 Articulating Loader - Bobcat Rental in Michigan

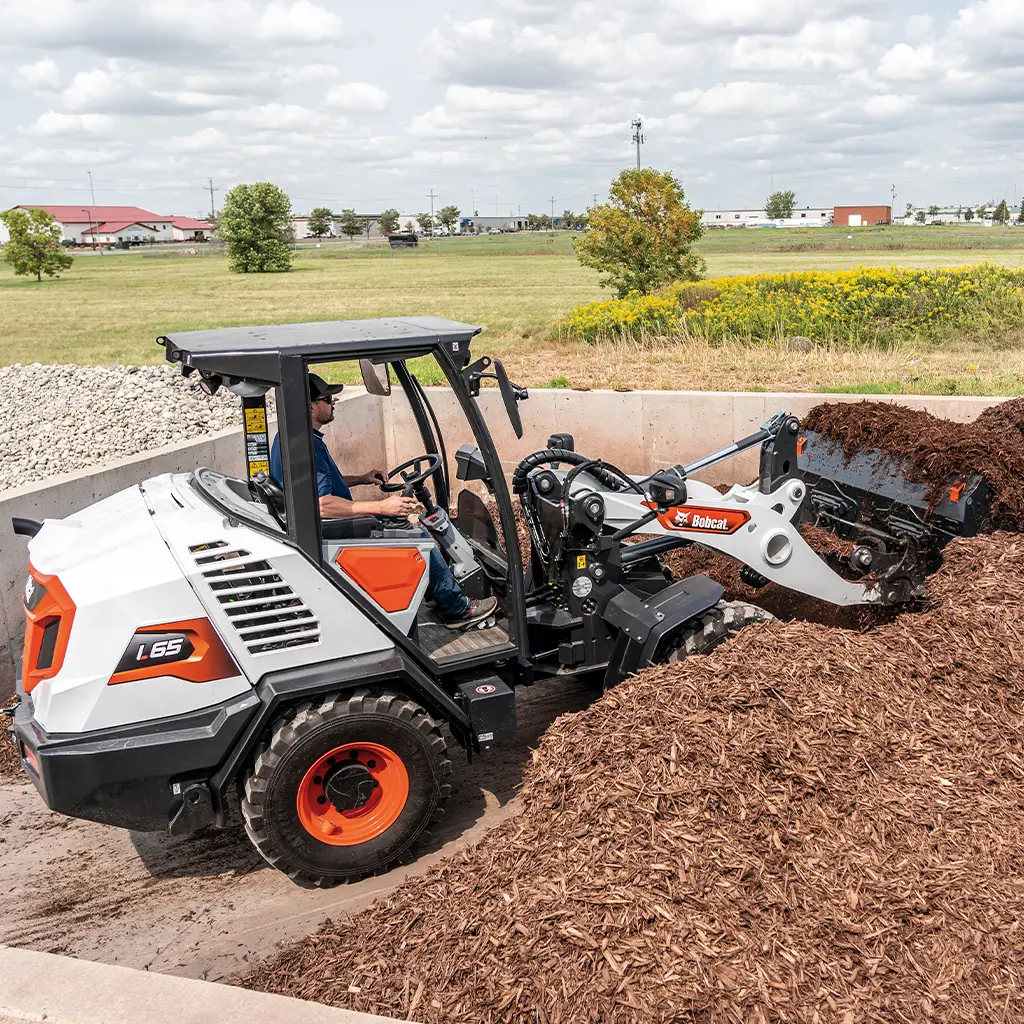

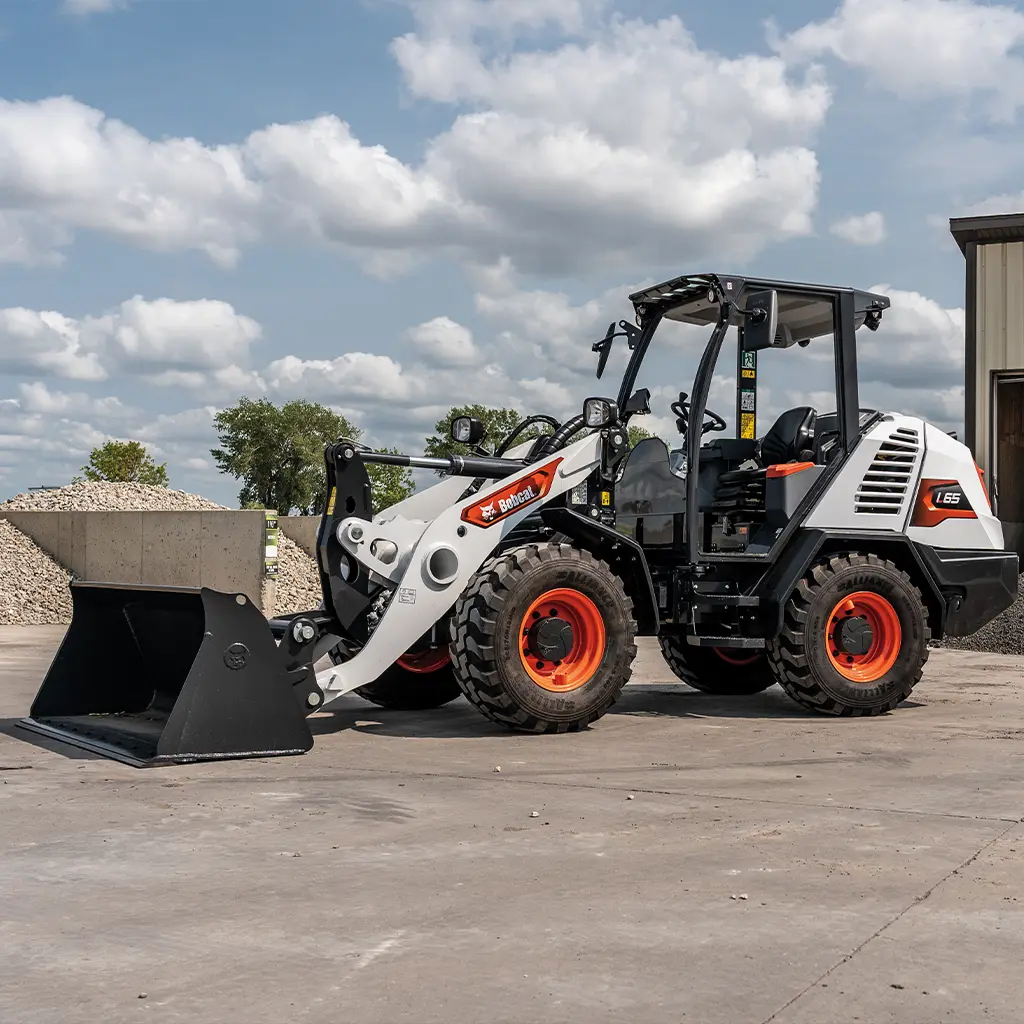

With a high bucket capacity, high lift height, impressive maneuverability and swift travel speeds it’s hard to beat the material-handling capabilities of the Bobcat® L65 compact wheel loader. This durable compact wheel loader delivers the performance, versatility and premium comfort to power through tough jobs in tight spaces.

• Bobcat Tier 4, turbo-charged engine delivers powerful, high-torque performance, high efficiency and convenient service
• Articulated steering for a tight-turning radius and high maneuverability
• High bucket capacity (7/8 cubic yard) and 10.5-foot lift height
• Full-color, 5-inch display panel
• Seat-mounted joystick

Specs

Key Specs

Horsepower	55 hp
Rated Operating Capacity with Bucket - Straight	3,133 lb
Rated Operating Capacity with Bucket - Articulated	2,618 lb
Rated Operating Capacity with Forks - Straight	3,759 lb
Rated Operating Capacity with Forks - Articulated	3,172 lb
Bucket Capacities	0.86- 1.3 yd3
Operating Weight	9,944 lb
Travel Speed - High	4.9 mph
Travel Speed - Low	15.1 mph
Auxiliary Standard Flow	19.8 gal/min
Width (Over Tires)	69.7 in

Engine

Emissions Tier (EPA)	Tier 4
Engine Cooling	Liquid
Engine Fuel	Diesel
Horsepower	55 hp
Turbocharged Engine	Yes

Performance

Rated Operating Capacity with Bucket - Straight	3,133 lb
Rated Operating Capacity with Bucket - Articulated	2,618 lb
Rated Operating Capacity with Forks - Straight	3,759 lb
Rated Operating Capacity with Forks - Articulated	3,172 lb
Tipping Load with Bucket - Straight	6,266 lb
Tipping Load with Bucket - Articulated	5,236 lb
Bucket Capacities	0.86- 1.3 yd3
Operating Weight	9,944 lb
Travel Speed - Low	4.9 mph
Travel Speed - High	15.1 mph

Capacities

Fuel Tank

20.8 gal

Hydraulic System

Auxiliary Std Flow

19.8 gal/min

Dimension

Length with Standard Bucket	218 in
Width (Over Tires)	69.7 in
Width (With Bucket)	74.8 in
Inside Turning Radius with Bucket	2,000 mm
Turning Radius Outside	169.2 in
Outside Turning Radius with Forks	4,591 mm
Wheelbase	82.7 in
Articulation Angle	40°
Oscillation Angle	8°
Dump Angle @ Maximum Height	45°
Ground Clearance	11.3 in
Height to Bucket Hinge Pin	10.58 ft
Rollback Angle	55°
Tire Size	365/70 R18
Wheel Tread	55.5 in
Height with Operator Cab	97.3 in
