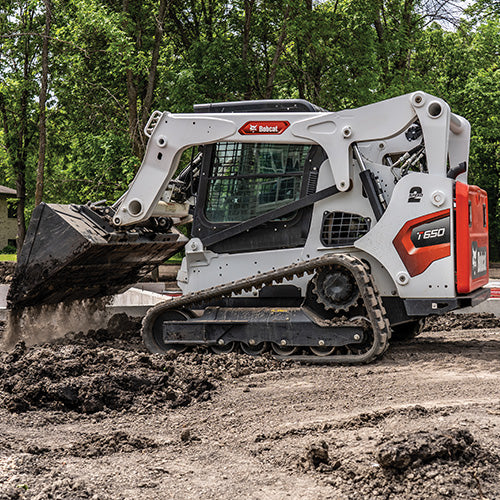

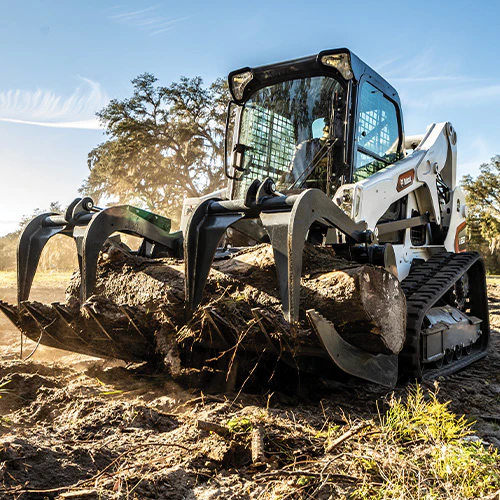

Bobcat T650 Series - Rental

The Bobcat T650 Series - Rental is an exceptional compact track loader designed to help you tackle tough jobs with maximum efficiency. Powered by a robust 74 HP diesel engine, it offers a rated operating capacity of 2,570 lb and a tipping load of 7,343 lb. With a vertical lift arm path and a 124-inch bucket hinge pin, you'll enjoy impressive reach and height for demanding tasks. Its 12.6-inch tracks enhance stability and reduce ground disturbance, while the convenient Bob-Tach coupler system provides secure and rapid attachment changes. The T650 handles speeds up to 8.7 mph for swift operation, bringing power and productivity to your jobsite.

Description

The Bobcat® T650 strikes an impressive balance, providing excellent lift capabilities, fast cycle times and powerful breakout forces that Bobcat is known for, but with simplified options and configurations.

Specs

Engine

Emissions Tier (EPA)	Tier 4
Engine Cooling	Liquid
Engine Fuel	Diesel
Horsepower	74
Turbocharged Engine	Yes

Performance

Rated Operating Capacity (ISO)	2,570 lb
Operating Capacity (50% of Tip)	3,670 lb
Tipping Load	7,343 lb
Operating Weight	9,113 lb
Travel Speed	6.2 mph
Travel Speed (2 - Speed Option)	8.7 mph
Ground Pressure (Rubber)	5.7 psi

Capacities

Fuel Tank

43.9 gal

Hydraulic System

System Relief @ Quick Couplers	3,500 psi
Auxiliary Std Flow	23 gal/min
Auxiliary High Flow	n/a

Dimension

Length	136.8 in
Length Without Attachment	108.4 in
Length With Standard Bucket	72.9 in
Width	72.9 in
Width (With Bucket)	74 in
Height	81.3 in
Height With Operator Cab	81.3 in
Height to Bucket Hinge Pin	124 in
Reach @ Maximum Height	36 in
Length of Track on Ground	57.7 in
Track Width	12.6 in
