Bobcat T66 Series - Rental

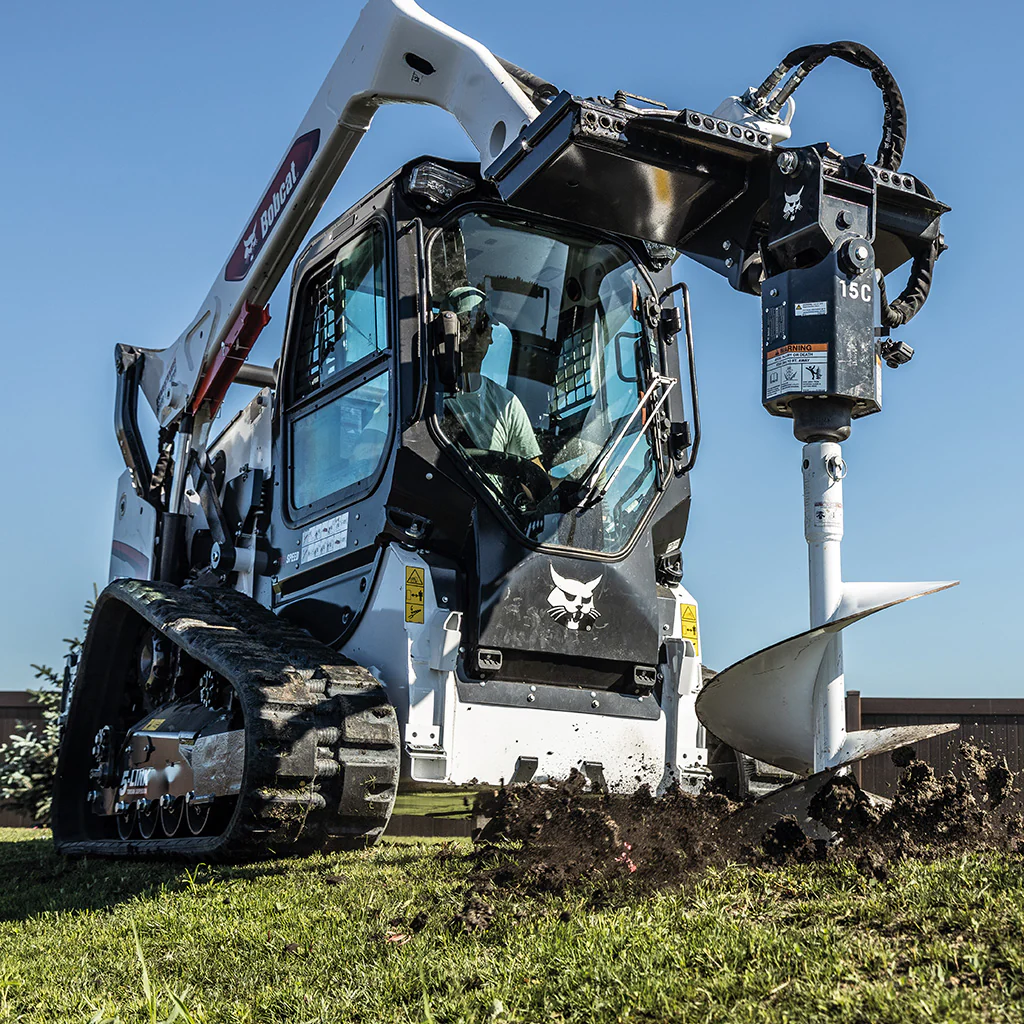

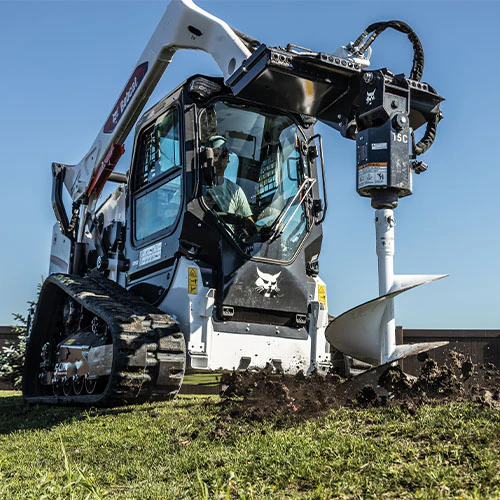

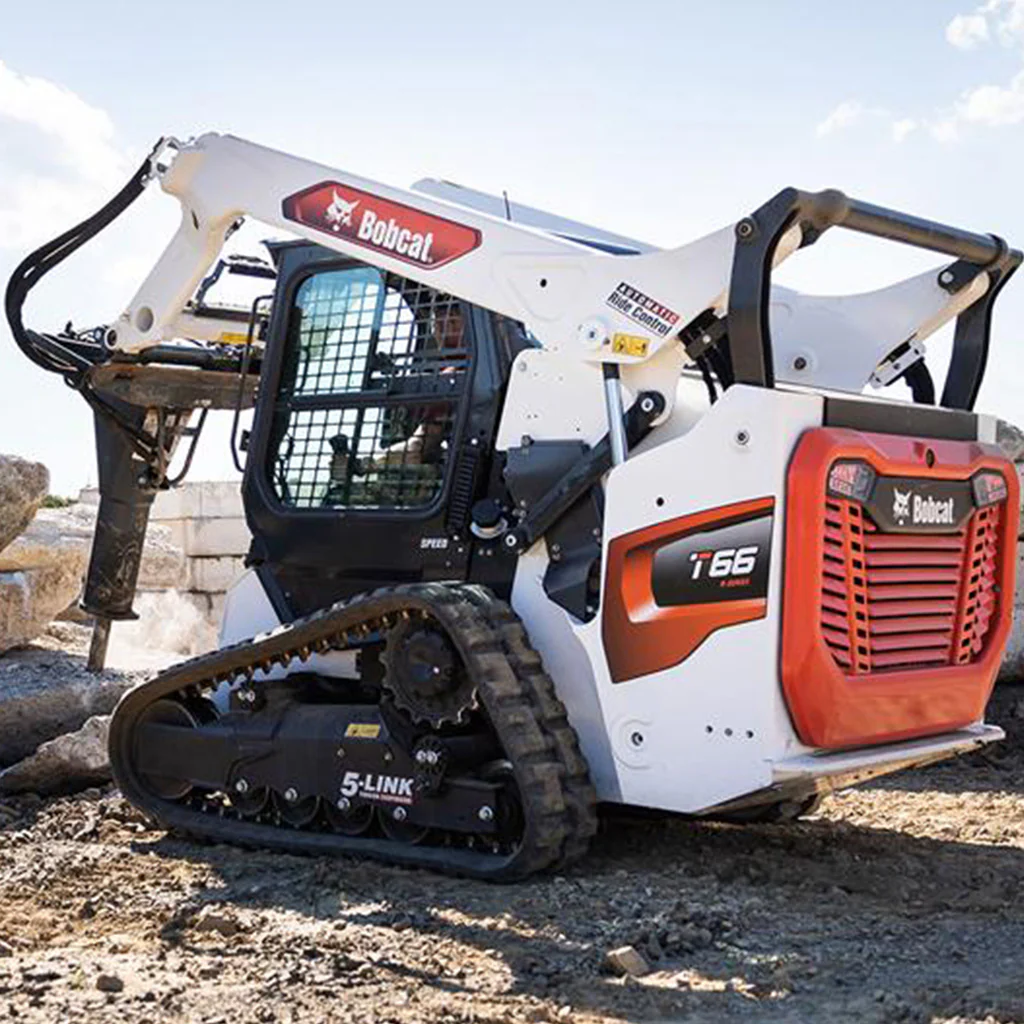

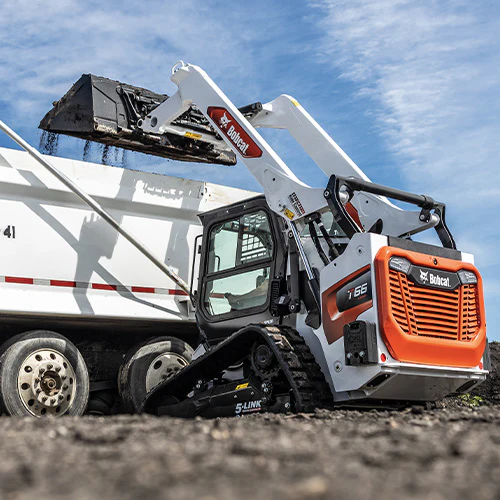

The Bobcat T66 Series is a powerful compact track loader designed to handle challenging tasks with ease. Equipped with a 74-horsepower diesel engine, it provides the strength and reliability you need on demanding worksites. Its vertical-lift path grants excellent reach and lift capacity, allowing you to place materials at new heights. With an operating capacity of 2,450 pounds and a tipping load up to 7,000 pounds, this machine offers impressive performance in a wide range of conditions. Its 28.3-gallon fuel tank and a high-flow option of 26.9 gal/min keep you productive, while the compact dimensions make it easy to maneuver. Review the detailed specifications below for a closer look at the T66’s capabilities.

Description

No matter how extreme your working conditions, the vertical-lift-path Bobcat® T66 compact track loader tackles tough jobs where other equipment can’t.

Specs

Engine

Emissions Tier (EPA)	Tier 4
Engine Cooling	Liquid
Engine Fuel	Diesel
Horsepower	74
Turbocharged Engine	Yes

Performance

Rated Operating Capacity (ISO)	2,450 lb
Operating Capacity (50% of Tip)	3,500 lb
Tipping Load	7,000 lb
Operating Weight	8,927 lb
Travel Speed	7.2 mph
Travel Speed (2 - Speed Option)	10.2 mph
Ground Pressure (Rubber)	5.9 psi

Capacities

Fuel Tank

28.3 gal

Hydraulic System

System Relief @ Quick Couplers	3,500 psi
Auxiliary Std Flow	17.6 gal/min
Auxiliary High Flow	26.9 gal/min

Dimension

Length	134.9 in
Length Without Attachment	107 in
Length With Standard Bucket	134.9 in
Width	67 in
Width (With Bucket)	68 in
Height	80.5 in
Height With Operator Cab	80.5 in
Height to Bucket Hinge Pin	120 in
Reach @ Maximum Height	36.7 in
Turning Radius	81.5 in
Length of Track on Ground	54.3 in
Track Width	12.6 in
