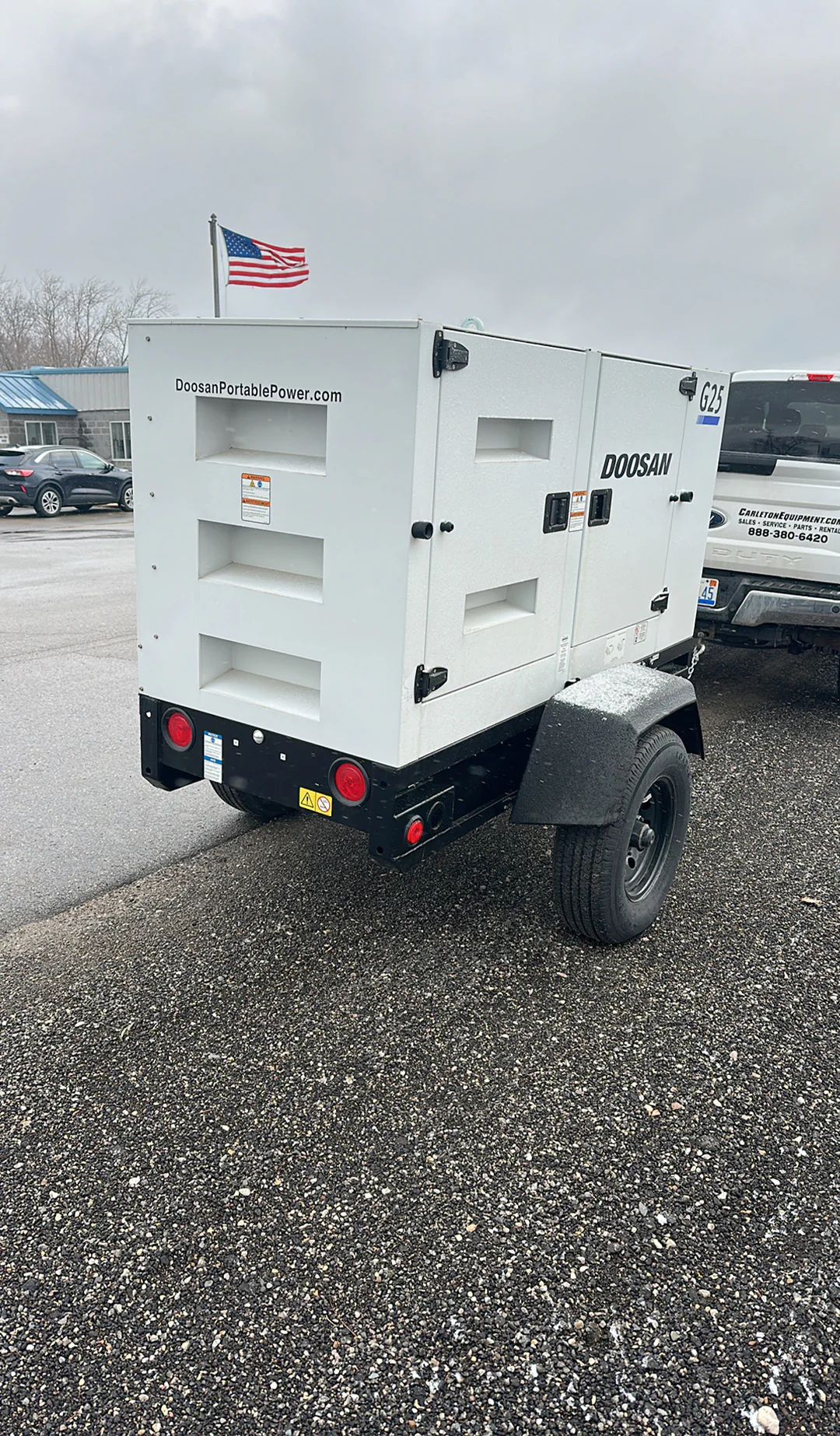

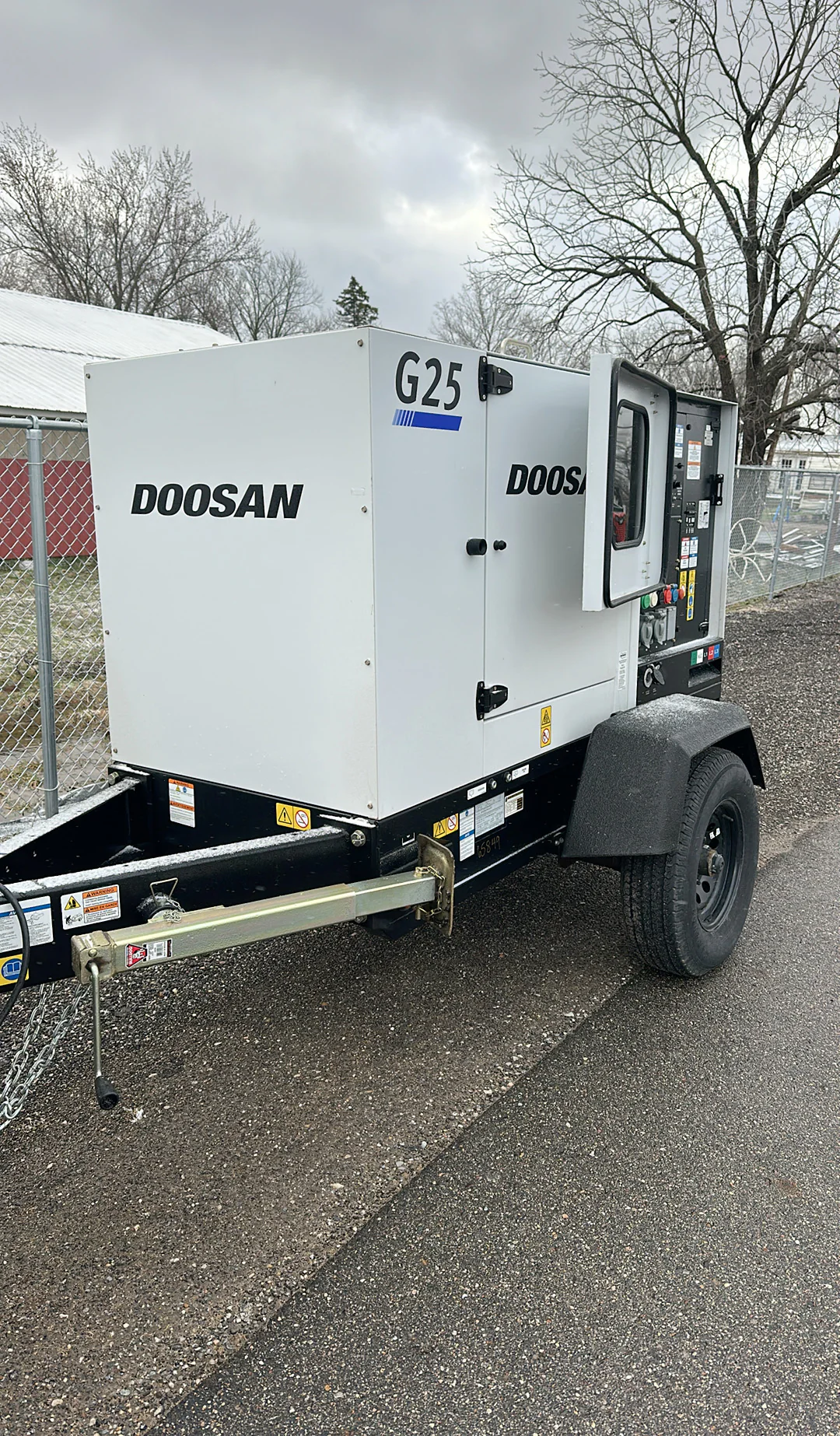

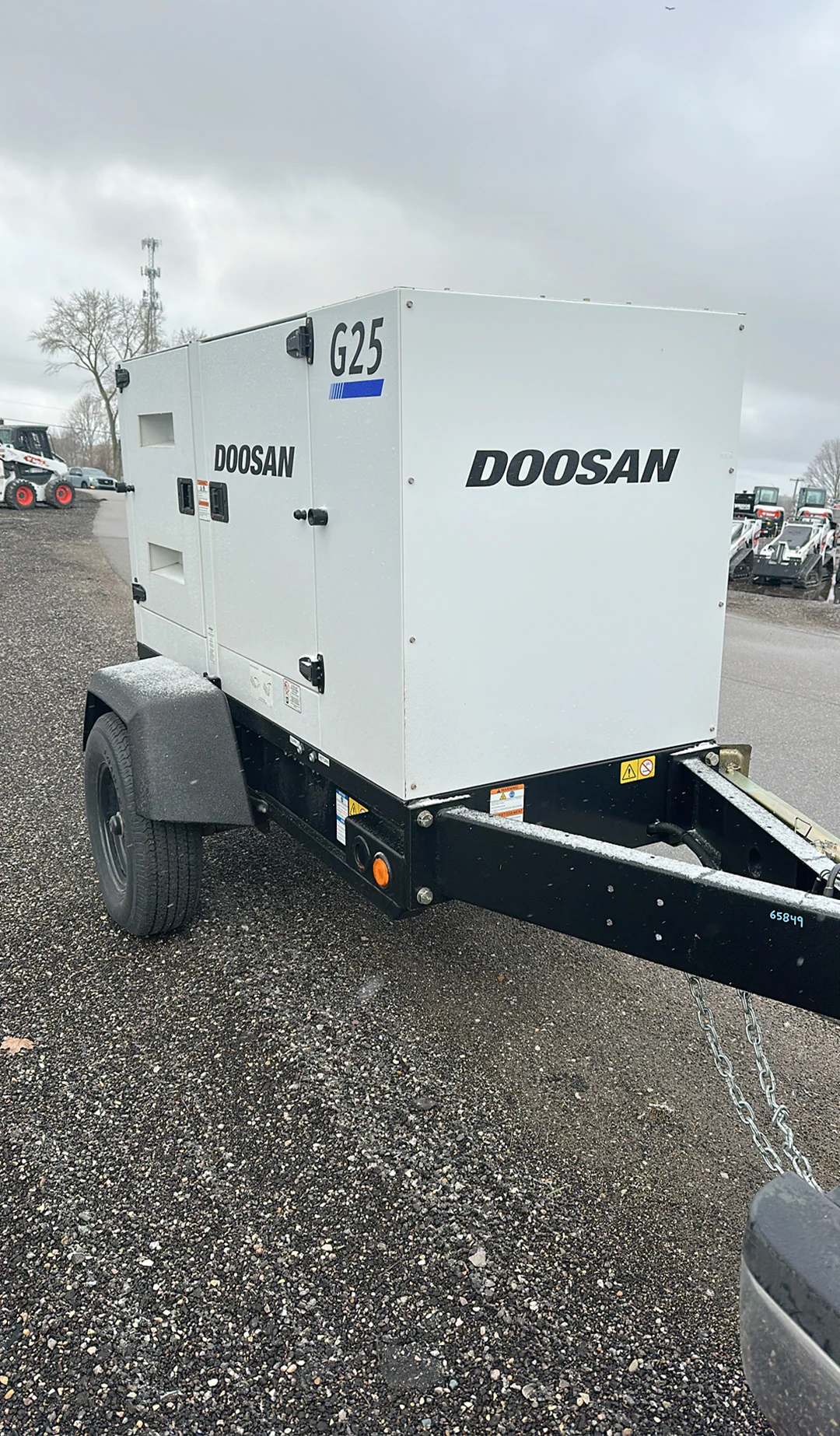

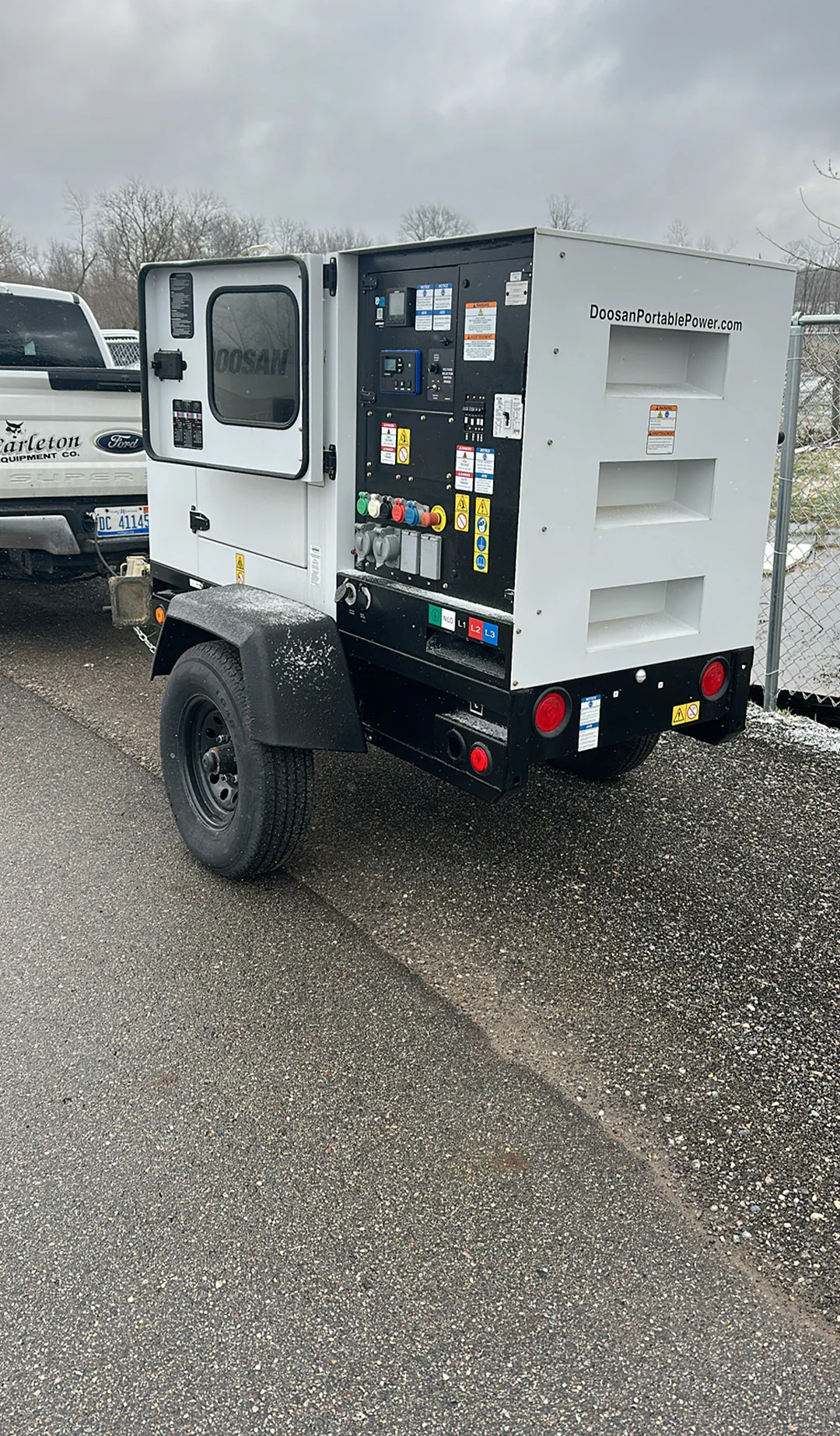

G25 Towable Generator

Product image 1
1 / 4

G25 Towable Generator

G25 Portable Generator

The G25 from Doosan Portable Power is dependable power in a small package.  The G25 features Tier 4 final-compliant technology and Doosan Portable Power’s legendary rugged enclosure and running gear, ensuring impressive performance regardless of jobsite conditions. The user-friendly controls, 24-hour run time, and sound attenuation make the G25 ideal for events, emergency backups, and construction.

Doosan Portable Power designed the G25WDO-T4F portable generator with the customer in mind. Easy to read, neatly laid-out gauges and diagnostic displays allow users to effectively monitor the generator and quickly diagnose any problems encountered. Training customers and users of the G25 is easy thanks to Doosan Portable Power’s simple to use operator controls. The G25 offers multiple connection options for ultimate versatility. The G25 is the perfect portable generator for any rental company; able to power concrete cutting tools on the jobsite or providing power to festivals.

The G25 generator from Doosan Portable Power is powered by a Doosan D18 engine, ensuring longer run-time and maintenance intervals. The Marelli alternator upholds Doosan Portable Power’s dedication to reliability and efficiency.  Marelli alternators provide excellent motor starting capability, stable voltage regulation and fast transient response. The G25 generator from Doosan Portable Power is designed to be placed in any application and power your success.

Specification Value
PRIME POWER RATING
@ 480V-3Ø, 0.8PF, 60Hz 25 kVA (20 kW), 30 Amps
@ 240V-3Ø, 0.8PF, 60Hz 25 kVA (20 kW), 60 Amps
@ 208V-3Ø, 0.8PF, 60Hz 22 kVA (18 kW), 61 Amps
@ 240V-3Ø, 1.0PF, 60Hz 14 kVA (14 kW), 58 Amps
@ 120V-1Ø, 1.0PF, 60Hz 14 kVA (14 kW), 58x2 Amps
Voltage Configuration 3-Position Switch
Frequency Capability 50Hz / 60Hz Switchable
Auto Start Yes
ENGINE
Make / Model Doosan D18
Emissions Tier Level Tier 4 Final
Power Output @ 1,800 RPM 38 HP (30 kW)
CAPACITIES
Fuel Tank Capacity 47 gal (177 L)
Runtime @ 100% Load 24.6 hr
DIMENSIONS (with Running Gear)
Length 130.6 in (3,317 mm)
Width 72.8 in (1,849 mm)
Height 76.3 in (1,938 mm)
Weight (Ready to Run) 3,140 lbs (1,424 kg)
Sound Level @ 23 ft (7m), 100% Load 63 dB(A)
