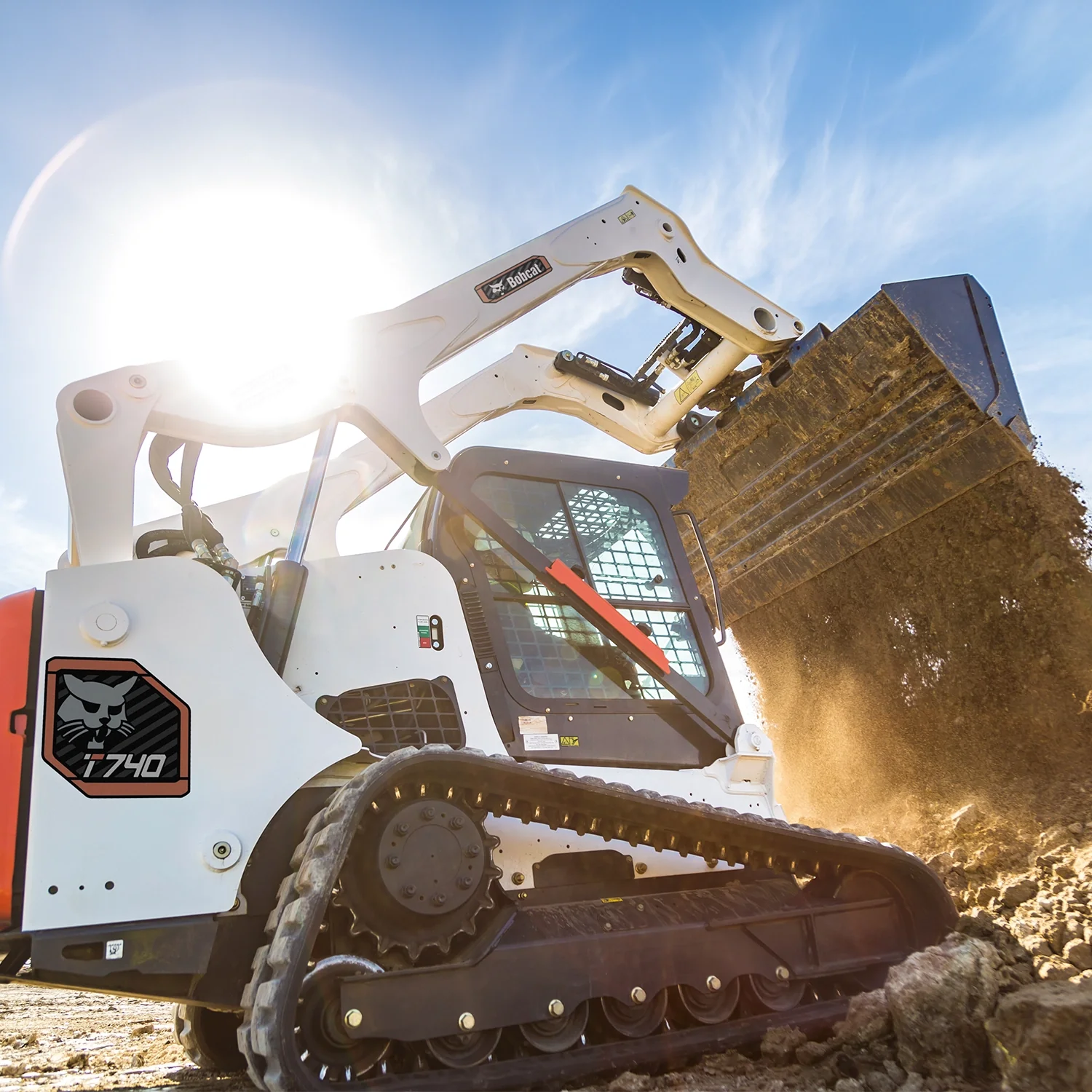

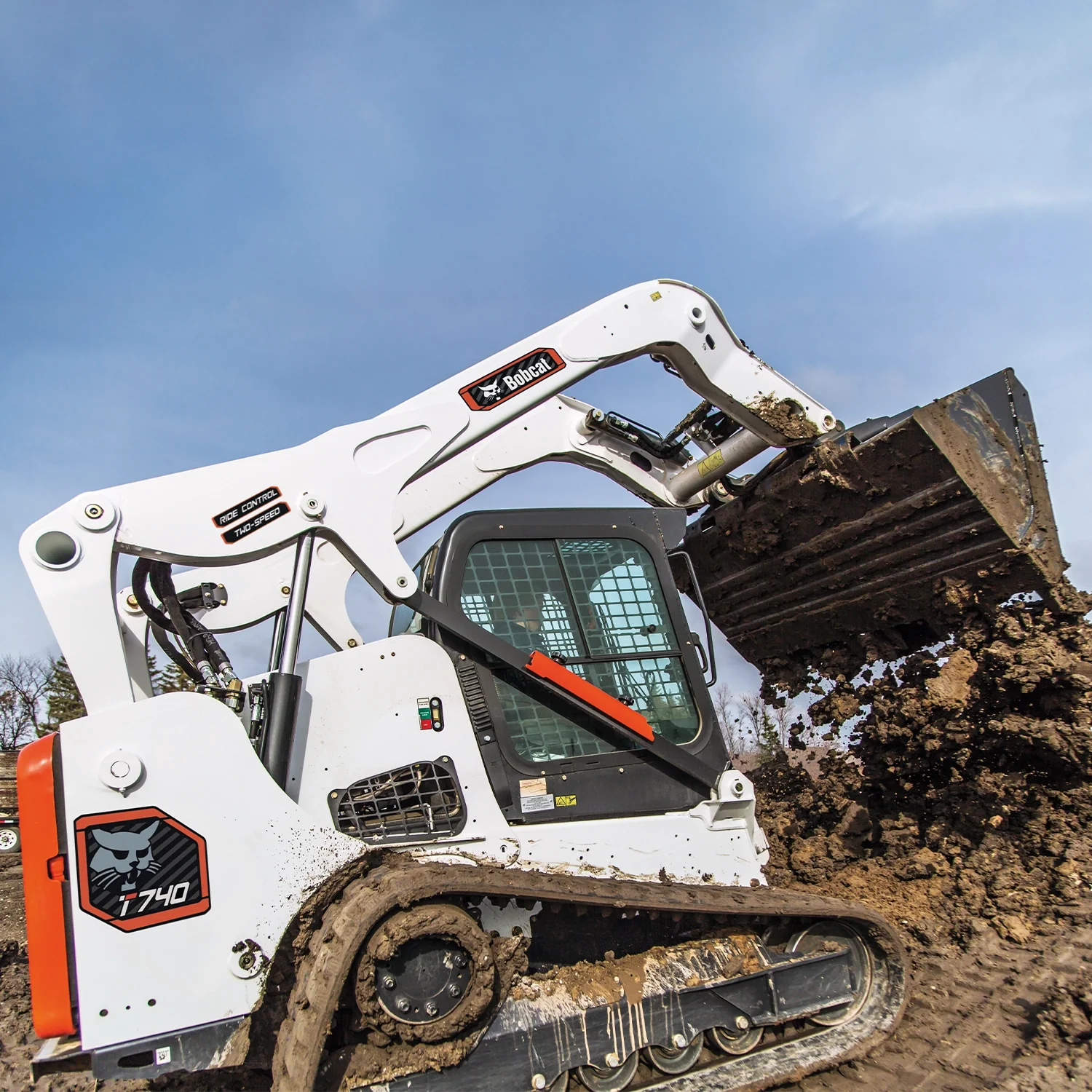

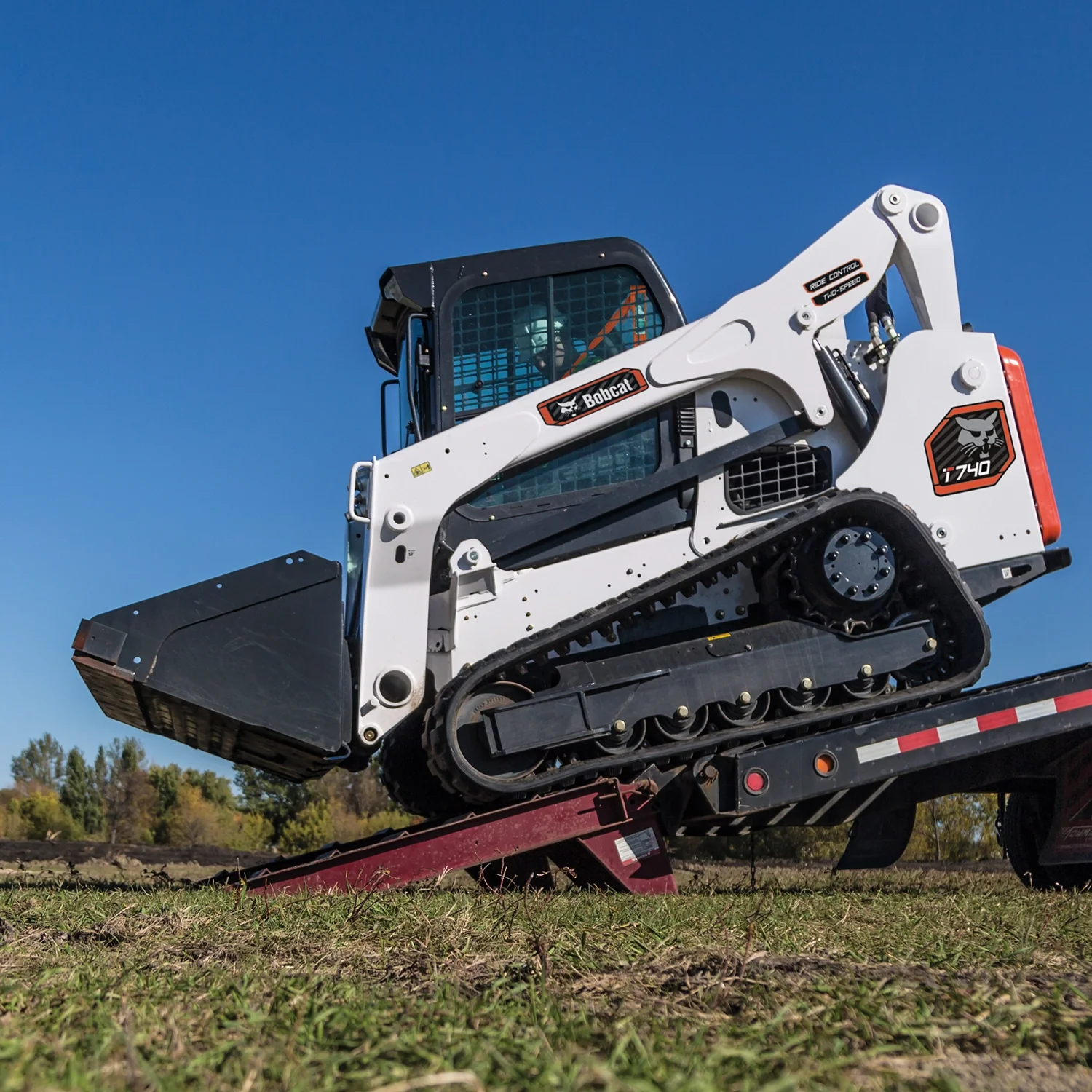

Bobcat® T740 Compact Track Loader

The T740 is a favorite among fleet owners and managers who depend on this high-performing compact loader every day to make quick work of demanding projects.

• Powerful, non-DPF engine
• Nearly 11 feet of lift height
• Impressive ground clearance
• Full-access serviceability

Specs

Configuration

Standard

Engine



Emissions Tier (EPA)	Tier 4
Engine Cooling	Liquid
Engine Fuel	Diesel
Horsepower	74 hp
Turbocharged Engine	Optional

Performance

Rated Operating Capacity (ISO)	3,200 lb
Operating Capacity (50% of Tip)	4,571 lb
Tipping Load	9,143 lb
Operating Weight	10,127 lb
Travel Speed	6 mph
Travel Speed (2 - Speed Option)	8.3 mph
Ground Pressure (Rubber)	4.1 psi

Capacities

Fuel Tank

44.4 gal

Hydraulic System

System Relief @ Quick Couplers	3,500 psi
Auxiliary Std Flow	23 gal/min
Auxiliary High Flow	30.5 gal.min

Dimension

Length	114.3 in
Length Without Attachment	114.3 in
Length With Standard Bucket	141.6 in
Width	78 in
Width (With Bucket)	80 in
Height	81.3 in
Height With Operator Cab	81.3 in
Height to Bucket Hinge Pin	132 in
Reach @ Maximum Height	33.6 in
Turning Radius	88 in
Length of Track on Ground	63.7 in
Track Width	17.7 in
Track Width - Optional	12.6 in
